Tube Lock Box Template – Precision Foldable Packaging for Cylindrical Products

The Tube Lock Box is a professionally designed folding box template optimized for cylindrical, tall, or tube-shaped products. With a tuck-in locking mechanism, integrated side glue flaps, and a fold-flat layout, this packaging solution combines durability, presentation, and manufacturing efficiency. Whether you’re shipping candles, bottles, or rolled prints, this box offers a snug, secure fit while maintaining a premium aesthetic.

Unlike standard cartons or glue-heavy designs, this box style uses a clever flap-and-fold system that ensures closure without adhesives at the ends. The design folds flat when not in use, making it ideal for efficient storage and fulfillment. When assembled, it forms a strong, enclosed structure that keeps contents protected and stable during shipping or retail display.

📦 Why Choose a Tube Lock Box?

Secure closure: Tuck flap lid locks the contents without requiring glue or tape at the top.
Glue flaps for structural strength: Side panels fold and glue securely to form a rigid box wall.
Flat-pack efficiency: Folds completely flat, minimizing storage space before assembly.
Compatible with cutting machines: Available in SVG, PDF, and DXF formats for laser cutters, Cricut, CNC, and more.
Custom dimensions: Scalable template – perfect for personalized product sizing and branding.

🎯 Ideal Use Cases

Candle packaging: Tall, slim design makes it ideal for container candles or taper candles.
Luxury skincare kits: Perfect for elongated product sets like serums, lotions, or vials.
Bottle or jar boxes: Protect glass bottles or jars during shipping or retail display.
Poster or artwork tubes: Securely encase rolled prints or paper documents for delivery.
Retail inserts & subscriptions: Provide neat, custom-fit packaging for inserts in monthly kits.

🧩 Structure and Features

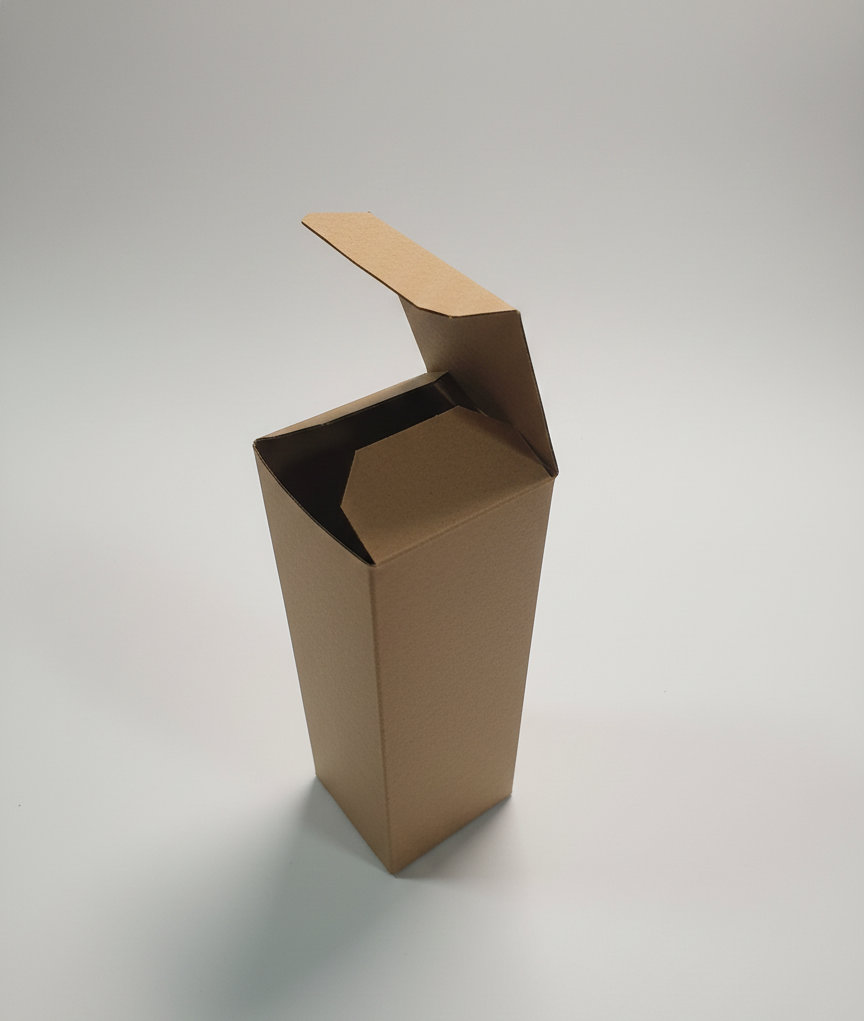

The Tube Lock Box is engineered to balance strength and simplicity. It consists of folded side panels that glue in place, forming a tube-like body. One or both ends feature tuck flaps that securely lock when folded inward. The locking system eliminates the need for external closures while maintaining a sleek look.

The structure is also designed to withstand stacking and compression, making it ideal for eCommerce shipping and retail shelves alike. Flat outer panels offer room for branding, stickers, or full-bleed prints.

📐 Material Compatibility

This template is compatible with a variety of printable and cuttable packaging materials:

✅ Kraft board: For eco-friendly and minimalist packaging styles
✅ Cardstock (250–400gsm): Suitable for lightweight retail or craft products
✅ Corrugated board: For added strength when shipping glass or fragile items
✅ Gloss or matte-coated board: Ideal for luxury or full-color branding

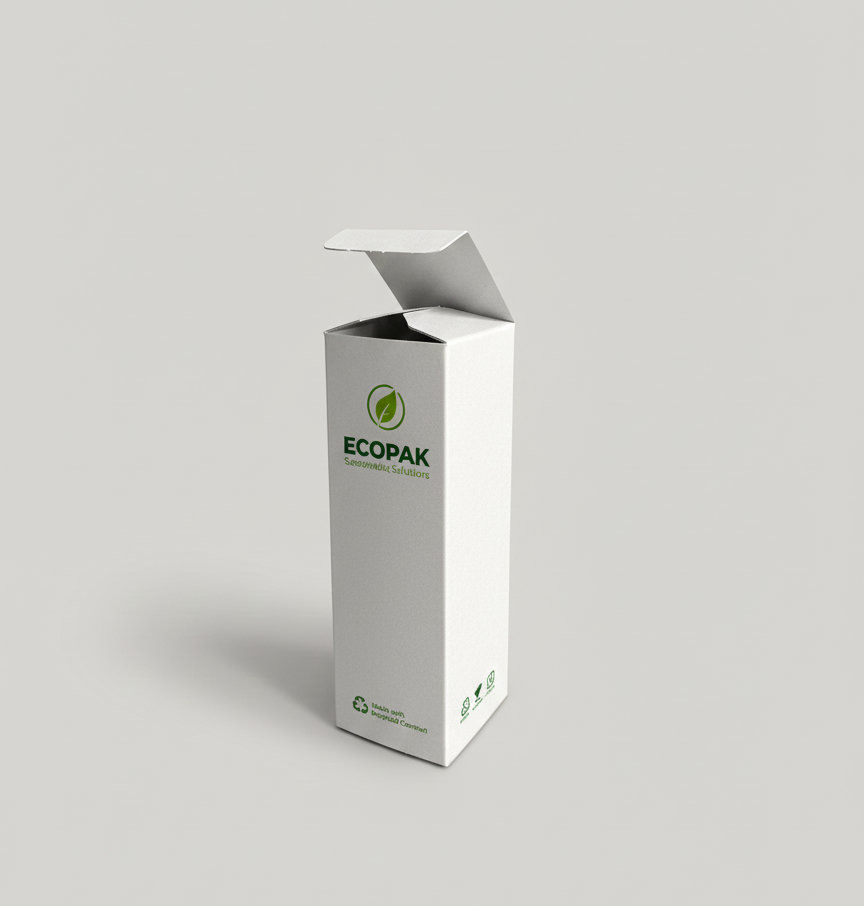

🎨 Customization and Branding

This box is fully customizable for dimension, color, and finish. Use your brand’s color palette, logo, and messaging on any of the flat surfaces. Ideal for embossing, foil stamping, or die-cut windows to give your packaging extra appeal.

Perfect for:

✅ Designers creating premium box mockups
✅ Print shops fulfilling dieline-based orders
✅ Online sellers on Etsy, Amazon, or Shopify
✅ Craft makers and DIY enthusiasts

📁 Download Formats

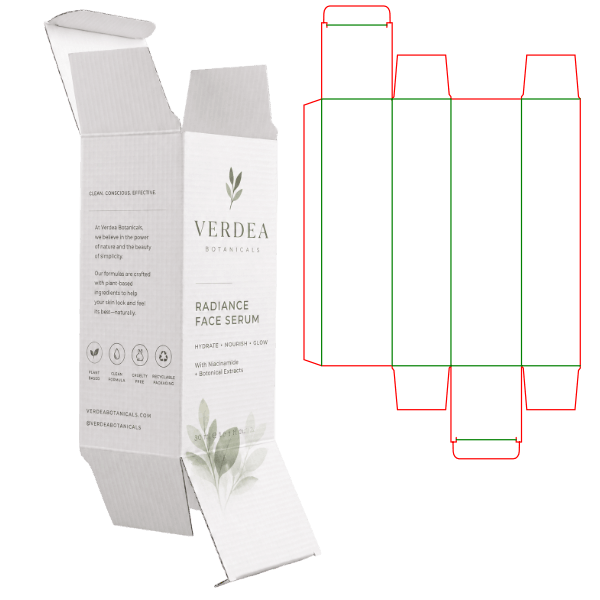

The Tube Lock Box dieline is available in three industry-standard formats:

SVG: Optimized for web, Cricut, Silhouette, Glowforge, and laser cutters
PDF: Print-ready format for manual cutting or prototyping
DXF: CAM-ready format for CNC, AutoCAD, and industrial workflows

📥 How to Use

Simply select or define your box size, download the file, and open it in your favorite design or cutting software. Print or upload directly to your machine. Fold along the crease lines, glue the side flaps, and tuck in the end flap to close the box.

🚀 Why Our Tube Lock Box Template?

Efficient: Fast and easy to assemble
Professional: Diecut-ready with precision crease and cut lines
Flexible: Reusable and scalable for different sizes
Browser-based: No design software required – generate in seconds
Free to use: No license restrictions – ideal for personal or commercial use

📦 Start Packaging Smarter

Whether you’re shipping, gifting, or displaying — the Tube Lock Box Template offers a sleek, secure, and scalable solution for packaging cylindrical or elongated items. Get your production-ready dieline instantly and take your packaging to the next level.

Download the SVG, PDF, or DXF now and start building smarter, better-looking boxes today.
